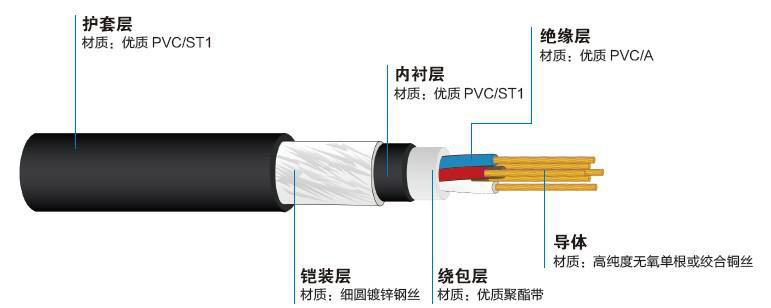

铜芯聚氯乙烯绝缘聚氯乙烯护套细钢丝铠装控制电缆 KVV32 型
— 技术参数
参考标准：GB/T9330.2-2008
额定电压：U0/U 为450/750V
额定温度：70℃
— 产品应用
本产品适用于交流额定电压U0/U 为450/750V 及以下控制，监控回路及保护线路等要求承受较大机械外力场合的聚氯乙烯绝
缘聚氯乙烯护套钢丝控制电缆。
— 使用特性
1. 电缆导体允许长期工作温度应不超过70℃
2. 电缆敷设温度应不低于0℃
3. 敷设时电缆允许弯曲半径应不小于电缆外径的12 倍
4. 护套材料为优质聚氯乙烯，抗老化，耐磨损，防水，防油，防化学腐蚀，无毒等特性
|
KVV32 型450/750V 铜芯聚氯乙烯绝缘聚氯乙烯护套钢丝铠装控制电缆的综合数据
|
|
芯线X 标称 截面（mm2）
|
导体结构(NO.mm）
|
绝缘厚度 规定值（mm）
|
护套厚度 规定值（mm）
|
电缆外形尺寸（mm）
|
20℃时导体 电阻 最大值(Ω/KM)
|
70℃时绝缘 电阻 最小值(MΩ/KM)
|
|
|
|
|
|
下限
|
上限
|
|
|
|
KVV32 4X4
|
1/2.25
|
0.8
|
1.5
|
16
|
19.4
|
4.61
|
0.0085
|
|
KVV32 4X6
|
1/2.76
|
0.8
|
1.5
|
17.2
|
20.8
|
3.08
|
0.007
|
|
KVV32 4X10
|
7/1.33
|
0.8
|
1.7
|
21.7
|
26.3
|
1.83
|
0.0065
|
|
KVV32 5X4
|
1/2.25
|
0.8
|
1.5
|
17
|
20.6
|
4.61
|
0.0085
|
|
KVV32 5X6
|
1/2.76
|
0.8
|
1.7
|
18.7
|
22.6
|
3.08
|
0.007
|
|
KVV32 5X10
|
7/1.33
|
1
|
1.7
|
23.3
|
28.1
|
1.83
|
0.0065
|
|
KVV32 7X1.5
|
1/1.38
|
0.7
|
1.5
|
15.1
|
18.3
|
12.1
|
0.01
|
|
KVV32 7X2.5
|
1/1.78
|
0.8
|
1.5
|
16.8
|
20.4
|
7.41
|
0.01
|
|
KVV32 7X4
|
1/2.25
|
0.8
|
1.5
|
18.1
|
21.9
|
4.61
|
0.0085
|
|
KVV32 7X6
|
1/2.76
|
0.8
|
1.7
|
20
|
24.1
|
3.08
|
0.007
|
|
KVV32 7X10
|
7/1.33
|
1
|
1.7
|
25
|
30.2
|
1.83
|
0.0065
|
|
KVV32 8X1.5
|
1/1.38
|
0.7
|
1.5
|
16.3
|
19.7
|
12.1
|
0.01
|
|
KVV32 8X2.5
|
1/1.78
|
0.8
|
1.5
|
18.7
|
22.6
|
7.41
|
0.01
|
|
KVV32 8X4
|
1/2.25
|
0.8
|
1.7
|
20.8
|
25.2
|
4.61
|
0.0085
|
|
KVV32 8X6
|
1/2.76
|
0.8
|
1.7
|
22.5
|
27.2
|
3.08
|
0.007
|
|
KVV32 8X10
|
7/1.33
|
1
|
1.7
|
27.5
|
33.2
|
1.83
|
0.0065
|
|
KVV32 10X1.5
|
1/1.38
|
0.7
|
1.5
|
17.8
|
21.5
|
12.1
|
0.01
|
|
KVV32 10X2.5
|
1/1.78
|
0.8
|
1.7
|
21.1
|
25.5
|
7.41
|
0.01
|
|
KVV32 10X4
|
1/2.25
|
0.8
|
1.7
|
22.8
|
27.6
|
4.61
|
0.0085
|
|
KVV32 10X6
|
1/2.76
|
0.8
|
1.7
|
24.8
|
29.9
|
3.08
|
0.007
|
|
KVV32 10X10
|
7/1.33
|
1
|
2
|
32.3
|
39
|
1.83
|
0.0065
|
|
KVV32 12X1.5
|
1/1.38
|
0.7
|
1.5
|
18.2
|
22
|
12.1
|
0.01
|
|
KVV32 12X2.5
|
1/1.78
|
0.8
|
1.7
|
21.6
|
26.1
|
7.41
|
0.01
|
|
KVV32 12X4
|
1/2.25
|
0.8
|
1.7
|
23.4
|
28.3
|
4.61
|
0.0085
|
|
KVV32 12X6
|
1/2.76
|
0.8
|
1.7
|
25.4
|
30.7
|
3.08
|
0.007
|
|
KVV32 14X1.5
|
1/1.38
|
0.7
|
1.7
|
19.2
|
23.2
|
12.1
|
0.01
|
|
KVV32 14X2.5
|
1/1.78
|
0.8
|
1.7
|
22.4
|
27.1
|
7.41
|
0.01
|
|
KVV32 14X4
|
1/2.25
|
0.8
|
1.7
|
24.3
|
29.4
|
4.61
|
0.0085
|
|
KVV32 14X6
|
1/2.76
|
0.8
|
1.7
|
26.5
|
32
|
3.08
|
0.007
|
|
KVV32 16X1.5
|
1/1.38
|
0.7
|
1.7
|
20
|
24.2
|
12.1
|
0.01
|
|
KVV32 16X2.5
|
1/1.78
|
0.8
|
1.7
|
23.4
|
28.2
|
7.41
|
0.01
|
|
KVV32 19X0.75
|
1/0.97
|
0.6
|
1.5
|
17.5
|
21.2
|
24.5
|
0.012
|
|
KVV32 19X1.0
|
1/1.13
|
0.6
|
1.7
|
18.2
|
22
|
18.1
|
0.011
|
|
KVV32 19X1.5
|
1/1.38
|
0.7
|
1.7
|
21.5
|
25.9
|
12.1
|
0.01
|
|
KVV32 19X2.5
|
1/1.78
|
0.8
|
1.7
|
24.3
|
29.4
|
7.41
|
0.01
|
|
KVV32 24X0.75
|
1/0.97
|
0.6
|
1.7
|
20
|
24.1
|
24.5
|
0.011
|
|
KVV32 24X1.0
|
1/1.13
|
0.6
|
1.7
|
21.5
|
26
|
18.1
|
0.011
|
|
KVV32 24X1.5
|
1/1.38
|
0.7
|
1.7
|
24.1
|
29.1
|
12.1
|
0.01
|
|
KVV32 24X2.5
|
1/1.78
|
0.8
|
1.7
|
28.5
|
34.5
|
7.41
|
0.01
|
|
KVV32 27X0.75
|
1/0.97
|
0.6
|
1.7
|
20.9
|
25.3
|
24.5
|
0.012
|
|
KVV32 27X1.0
|
1/1.13
|
0.6
|
1.7
|
21.8
|
26.4
|
18.1
|
0.011
|
|
KVV32 27X1.5
|
1/1.38
|
0.7
|
1.7
|
24.5
|
29.6
|
12.1
|
0.01
|
|
KVV32 27X2.5
|
1/1.78
|
0.8
|
1.7
|
29
|
35
|
7.41
|
0.01
|
|
KVV32 30X0.75
|
1/0.97
|
0.6
|
1.7
|
21.5
|
26
|
24.5
|
0.012
|
|
KVV32 30X1.0
|
1/1.13
|
0.6
|
1.7
|
22.4
|
27.1
|
18.1
|
0.011
|
|
KVV32 30X1.5
|
1/1.38
|
0.7
|
1.7
|
25.2
|
30.4
|
12.1
|
0.01
|
|
KVV32 30X2.5
|
1/1.78
|
0.8
|
1.7
|
29.8
|
36
|
7.41
|
0.01
|
|
KVV32 37X0.75
|
1/0.97
|
0.6
|
1.7
|
22.7
|
27.4
|
24.5
|
0.012
|
|
KVV32 37X1.0
|
1/1.13
|
0.6
|
1.7
|
23.7
|
28.7
|
18.1
|
0.011
|
|
KVV32 37X1.5
|
1/1.38
|
0.7
|
1.7
|
26.7
|
32.3
|
12.1
|
0.01
|
|
KVV32 37X2.5
|
1/1.78
|
0.8
|
2
|
32.5
|
39.3
|
7.41
|
0.01
|
|
KVV32 44X0.75
|
1/0.97
|
0.6
|
1.7
|
24.8
|
29.9
|
24.5
|
0.012
|
|
KVV32 44X1.0
|
1/1.13
|
0.6
|
1.7
|
25.9
|
31.3
|
18.1
|
0.011
|
|
KVV32 44X1.5
|
1/1.38
|
0.7
|
2
|
30.3
|
36.7
|
12.1
|
0.01
|
|
KVV32 44X2.5
|
1/1.78
|
0.8
|
2.2
|
36.1
|
43.6
|
7.41
|
0.01
|
|
KVV32 48X0.75
|
1/0.97
|
0.6
|
1.7
|
25.1
|
30.3
|
24.5
|
0.012
|
|
KVV32 48X1.0
|
1/1.13
|
0.6
|
1.7
|
26.3
|
31.7
|
18.1
|
0.011
|
|
KVV32 48X1.5
|
1/1.38
|
0.7
|
2
|
30.7
|
37.1
|
12.1
|
0.01
|
|
KVV32 48X2.5
|
1/1.78
|
0.8
|
2.2
|
36.6
|
44.2
|
7.41
|
0.012
|
|
KVV32 52X0.75
|
1/0.97
|
0.6
|
1.7
|
25.1
|
30.3
|
24.5
|
0.012
|
|
KVV32 52X1.0
|
1/1.13
|
0.6
|
1.7
|
26.3
|
31.7
|
18.1
|
0.011
|
|
KVV32 52X1.5
|
1/1.38
|
0.7
|
2
|
30.7
|
37.1
|
12.1
|
0.012
|
|
KVV32 52X2.5
|
1/1.78
|
0.8
|
2.2
|
36.6
|
44.2
|
7.41
|
0.012
|
|
KVV32 61X0.75
|
1/0.97
|
0.6
|
1.7
|
26.8
|
32.4
|
24.5
|
0.012
|
|
KVV32 61X1.0
|
1/1.13
|
0.6
|
1.7
|
29.1
|
35.1
|
18.1
|
0.011
|
|
KVV32 61X1.5
|
1/1.38
|
0.7
|
2
|
34.1
|
41.2
|
12.1
|
0.012
|
|
KVV32 61X2.5
|
1/1.78
|
0.8
|
2.2
|
39.3
|
47.5
|
7.41
|
0.012
|
