· 全称 : 铜芯聚氯乙烯绝缘聚氯乙烯护套铜带屏蔽钢带铠装控制电缆
· 国家标准 : GB9330
· 额定电压 : 450/750V
· 颜色 : 通常为黑色
KVVP2-22铜带屏蔽铠装控制电缆和KVVP22屏蔽控制电缆唯一不同的地方是屏蔽不一样，KVVP22是编织屏蔽，而KVVP2-22是铜带屏蔽，从图上就可以看得出来，KVVP2-22具有更好的屏蔽做用，适用于干扰更强的场合。但是KVVP2-22和KVVP22的结构是一样的

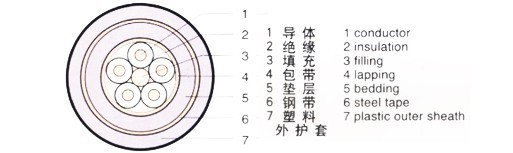

KVVP2-22结构示意图（屏蔽为铜带屏蔽）
KVVP2-22铜带屏蔽铠装控制电缆规格型号，技术参数表
|
芯数及导体标称截面
mm2
|
导体结构
|
绝缘厚度
|
铜带厚度
|
钢带厚度
|
护套厚度
|
电缆近似外径
|
电缆近似重量
|
|
NO./фmm
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
-
|
450/750V
|
0.6/1kV
|
-
|
-
|
450/750V
|
0.6/1kV
|
450/750V
|
0.6/1kV
|
450/750V
|
0.6/1kV
|
|
2×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
11.0
|
12.4
|
189
|
228
|
|
2×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
11.3
|
12.7
|
202
|
242
|
|
2×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
12.2
|
13.2
|
236
|
265
|
|
2×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
13.4
|
14.0
|
287
|
306
|
|
2×4
|
1/2.25
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
14.4
|
15.8
|
340
|
387
|
|
2×6
|
1/2.76
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
15.4
|
16.8
|
404
|
454
|
|
2×10
|
7/1.35
|
1.0
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
19.2
|
19.4
|
598
|
607
|
|
3×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
11.3
|
12.8
|
207
|
249
|
|
3×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
11.7
|
13.1
|
223
|
266
|
|
3×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
12.6
|
13.7
|
264
|
295
|
|
3×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
13.9
|
14.5
|
328
|
348
|
|
3×4
|
1/2.25
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
14.9
|
16.4
|
397
|
450
|
|
3×6
|
1/2.76
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
16.0
|
17.5
|
483
|
538
|
|
3×10
|
7/1.35
|
1.0
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
20.1
|
20.3
|
727
|
736
|
|
4×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
11.9
|
13.5
|
230
|
278
|
|
4×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
12.3
|
13.8
|
250
|
299
|
|
4×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
13.4
|
14.4
|
300
|
335
|
|
4×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
14.8
|
15.4
|
379
|
400
|
|
4×4
|
1/2.25
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
15.9
|
17.5
|
466
|
526
|
|
4×6
|
1/2.76
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
17.2
|
18.7
|
574
|
638
|
|
4×10
|
7/1.35
|
1.0
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
21.7
|
21.9
|
877
|
886
|
|
5×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
12.5
|
14.2
|
255
|
308
|
|
5×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
12.9
|
14.6
|
278
|
334
|
|
5×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
14.2
|
15.3
|
338
|
377
|
|
5×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
15.8
|
16.4
|
433
|
455
|
|
5×4
|
1/2.25
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
17.0
|
18.7
|
538
|
407
|
|
5×6
|
1/2.76
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
18.4
|
20.1
|
671
|
743
|
|
5×10
|
7/1.35
|
1.0
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
23.4
|
23.6
|
1033
|
1044
|
|
芯数及导体标称截面
mm2
|
导体结构
|
绝缘厚度
|
铜带厚度
|
钢带厚度
|
护套厚度
|
电缆近似外径
|
电缆近似重量
|
|
NO./фmm
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
-
|
450/750V
|
0.6/1kV
|
-
|
-
|
450/750V
|
0.6/1kV
|
450/750V
|
0.6/1kV
|
450/750V
|
0.6/1kV
|
|
6×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
13.2
|
15.0
|
278
|
336
|
|
6×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
13.6
|
15.4
|
305
|
365
|
|
6×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
15.0
|
16.2
|
373
|
415
|
|
6×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
16.8
|
17.4
|
482
|
505
|
|
6×4
|
1/2.25
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
18.2
|
20.0
|
604
|
679
|
|
6×6
|
1/2.76
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
19.7
|
21.5
|
770
|
852
|
|
6×10
|
7/1.35
|
1.0
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
25.2
|
25.4
|
1195
|
1207
|
|
7×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
13.2
|
15.0
|
286
|
346
|
|
7×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
13.6
|
15.4
|
316
|
378
|
|
7×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
15.0
|
16.2
|
389
|
432
|
|
7×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
16.8
|
17.4
|
508
|
531
|
|
7×4
|
1/2.25
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
18.2
|
20.0
|
644
|
721
|
|
7×6
|
1/2.76
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
19.7
|
21.5
|
827
|
912
|
|
7×10
|
7/1.35
|
1.0
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
25.2
|
25.4
|
1291
|
1302
|
|
8×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
13.8
|
15.7
|
313
|
380
|
|
8×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
14.3
|
16.3
|
347
|
416
|
|
8×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
15.8
|
17.1
|
430
|
4778
|
|
8×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
17.8
|
18.4
|
567
|
592
|
|
8×4
|
1/2.25
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
19.8
|
21.3
|
740
|
809
|
|
8×6
|
1/2.76
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
21.4
|
23.0
|
939
|
1012
|
|
8×10
|
7/1.35
|
1.0
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.9
|
27.0
|
27.2
|
1440
|
1452
|
|
10×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
15.3
|
17.5
|
368
|
448
|
|
10×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
16.0
|
18.2
|
410
|
492
|
|
10×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
17.8
|
19.2
|
513
|
569
|
|
10×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
20.6
|
20.8
|
702
|
711
|
|
10×4
|
1/2.25
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
22.5
|
24.3
|
896
|
981
|
|
10×6
|
1/2.76
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.9
|
24.5
|
26.3
|
1143
|
1233
|
|
10×10
|
7/1.35
|
1.0
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
2.0
|
31.3
|
31.9
|
1766
|
1809
|
|
12×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
15.7
|
17.9
|
396
|
482
|
|
12×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
16.3
|
18.6
|
445
|
533
|
|
12×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
18.2
|
19.6
|
561
|
621
|
|
12×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
21.1
|
21.3
|
775
|
784
|
|
12×4
|
1/2.25
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
23.0
|
24.9
|
1000
|
1093
|
|
12×6
|
1/2.76
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
25.2
|
27.0
|
1288
|
1387
|
|
14×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
16.2
|
18.6
|
430
|
523
|
|
14×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
16.9
|
19.3
|
485
|
581
|
|
14×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
18.9
|
20.4
|
617
|
681
|
|
14×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
22.0
|
22.2
|
858
|
868
|
|
14×4
|
1/2.25
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
24.0
|
26.0
|
1117
|
1220
|
|
14×6
|
1/2.76
|
0.8
|
1.0
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
26.3
|
28.3
|
1447
|
1558
|
|
芯数及导体标称截面
mm2
|
导体结构
|
绝缘厚度
|
铜带厚度
|
钢带厚度
|
护套厚度
|
电缆近似外径
|
电缆近似重量
|
|
|
NO./фmm
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
|
|
-
|
450/750V
|
0.6/1kV
|
-
|
-
|
450/750V
|
0.6/1kV
|
450/750V
|
0.6/1kV
|
450/750V
|
0.6/1kV
|
|
16×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
16.8
|
19.3
|
466
|
567
|
|
16×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
17.6
|
20.1
|
527
|
631
|
|
16×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
19.7
|
21.3
|
675
|
744
|
|
16×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
22.9
|
23.1
|
944
|
954
|
|
19×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
17.5
|
20.1
|
508
|
617
|
|
19×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
18.3
|
20.9
|
578
|
691
|
|
19×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
21.0
|
22.2
|
764
|
821
|
|
19×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
24.0
|
24.2
|
1051
|
1062
|
|
24×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.5
|
1.8
|
19.7
|
22.7
|
609
|
740
|
|
24×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
21.0
|
23.6
|
715
|
832
|
|
24×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
23.7
|
25.1
|
925
|
994
|
|
24×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
27.3
|
27.5
|
1284
|
1296
|
|
27×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
20.4
|
23.1
|
666
|
787
|
|
27×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
21.4
|
24.1
|
764
|
889
|
|
27×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
24.2
|
25.6
|
994
|
1067
|
|
27×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
27.9
|
28.1
|
1390
|
1402
|
|
30×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
21.0
|
23.7
|
711
|
841
|
|
30×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
22.0
|
24.8
|
818
|
953
|
|
30×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
24.9
|
26.4
|
1070
|
1148
|
|
30×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.9
|
28.7
|
29.1
|
1504
|
1530
|
|
37×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
22.2
|
25.2
|
815
|
965
|
|
37×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.9
|
23.4
|
26.4
|
943
|
1100
|
|
37×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
26.5
|
28.1
|
1245
|
1336
|
|
37×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.5
|
2.0
|
2.0
|
31.3
|
32.5
|
2121
|
2121
|
|
44×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
24.4
|
27.8
|
939
|
1114
|
|
44×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.9
|
25.7
|
29.3
|
1090
|
1285
|
|
44×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
2.0
|
29.3
|
31.5
|
1446
|
1579
|
|
44×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.5
|
2.0
|
2.1
|
34.7
|
36.1
|
2457
|
2473
|
|
48×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.8
|
24.7
|
28.2
|
989
|
1174
|
|
48×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.9
|
26.0
|
29.7
|
1152
|
1358
|
|
48×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.5
|
1.7
|
2.0
|
29.7
|
33.1
|
1833
|
1992
|
|
48×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.5
|
2.0
|
2.1
|
35.2
|
36.6
|
2601
|
2617
|
|
52×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.9
|
25.3
|
29.1
|
1045
|
1254
|
|
52×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.9
|
26.7
|
30.4
|
1220
|
1438
|
|
52×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.5
|
2.0
|
2.0
|
31.0
|
33.9
|
1980
|
2103
|
|
52×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.5
|
2.2
|
2.2
|
36.5
|
77.7
|
2790
|
2799
|
|
61×0.75
|
1/0.97
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
1.9
|
26.6
|
30.6
|
1170
|
1405
|
|
61×1
|
1/1.13
|
0.6
|
0.8
|
1×0.05
|
2×0.2
|
1.7
|
2.0
|
28.0
|
32.2
|
1373
|
1632
|
|
61×1.5
|
1/1.38
|
0.7
|
0.8
|
1×0.05
|
2×0.5
|
2.0
|
2.1
|
32.7
|
35.9
|
2214
|
2370
|
|
61×2.5
|
1/1.78
|
0.8
|
0.8
|
1×0.05
|
2×0.5
|
2.2
|
2.2
|
38.5
|
39.7
|
3143
|
3143
|
|
