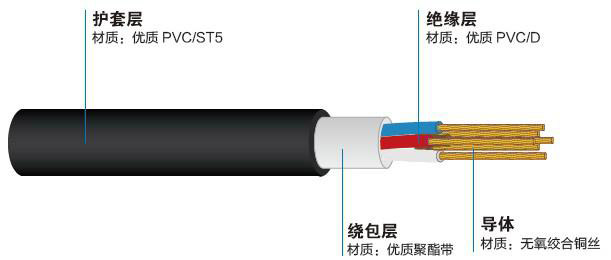

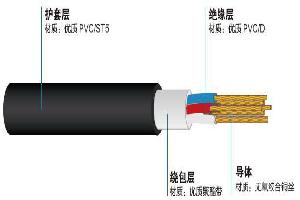

铜芯聚氯乙烯绝缘聚氯乙烯护套控制软电缆 KVVR 型
— 技术参数
参考标准：GB/T9330.2-2008
额定电压：U0/U 为450/750V
额定温度：70℃
— 产品应用
本产品适用于交流额定电压U0/U 为450/750V 及以下控制，监控回路及保护线路等所使用的聚氯乙烯绝缘和聚氯乙烯护套
控制软电缆。
— 使用特性
1. 电缆导体允许长期工作温度应不超过70℃
2. 电缆敷设温度应不低于0℃
3. 敷设时电缆允许弯曲半径应不小于电缆外径的6 倍
4. 护套材料为优质聚氯乙烯，抗老化，耐磨损，防水，防油，防化学腐蚀，无毒等特性
|
KVVR 型450/750V 铜芯聚氯乙烯绝缘聚氯乙烯护套控制软电缆的综合数据
|
|
芯线X 标称 截面（mm2）
|
导体结构(NO.mm）
|
绝缘厚度 规定值（mm）
|
护套厚度 规定值（mm）
|
多支绞合导体电缆外形尺寸（mm）
|
20℃时导体 电阻 最大值(Ω/KM)
|
70℃时绝缘 电阻 最小值(MΩ/KM)
|
|
下限
|
上限
|
|
KVVR2X0.5
|
16/0.20
|
0.6
|
1.2
|
6.4
|
8.1
|
39
|
0.013
|
|
KVVR2X0.75
|
24/0.20
|
0.6
|
1.2
|
6.7
|
8.5
|
26
|
0.011
|
|
KVVR2X1.0
|
32/0.20
|
0.6
|
1.2
|
7
|
8.8
|
19.5
|
0.01
|
|
KVVR2X1.5
|
48/0.20
|
0.7
|
1.2
|
7.9
|
9.9
|
13.3
|
0.01
|
|
KVVR2X2.5
|
40/0.25
|
0.8
|
1.2
|
9.1
|
11.4
|
7.98
|
0.009
|
|
KVVR3X0.5
|
16/0.20
|
0.6
|
1.2
|
6.8
|
8.5
|
39
|
0.013
|
|
KVVR3X0.75
|
24/0.20
|
0.6
|
1.2
|
7.1
|
8.9
|
26
|
0.011
|
|
KVVR3X1.0
|
32/0.20
|
0.6
|
1.2
|
7.4
|
9.3
|
19.5
|
0.01
|
|
KVVR3X1.5
|
48/0.20
|
0.7
|
1.2
|
8.3
|
10.4
|
13.3
|
0.01
|
|
KVVR3X2.5
|
40/0.25
|
0.8
|
1.2
|
9.7
|
12
|
7.98
|
0.009
|
|
KVVR4X0.5
|
16/0.20
|
0.6
|
1.2
|
7.3
|
9.2
|
39
|
0.013
|
|
KVVR4X0.75
|
24/0.20
|
0.6
|
1.2
|
7.6
|
9.6
|
26
|
0.011
|
|
KVVR4X1.0
|
32/0.20
|
0.6
|
1.2
|
8
|
10
|
19.5
|
0.01
|
|
KVVR4X1.5
|
48/0.20
|
0.7
|
1.2
|
9
|
11.3
|
13.3
|
0.01
|
|
KVVR4X2.5
|
40/0.25
|
0.8
|
1.2
|
10.5
|
13.1
|
7.98
|
0.009
|
|
KVVR5X0.5
|
16/0.20
|
0.6
|
1.2
|
7.9
|
9.9
|
39
|
0.013
|
|
KVVR5X0.75
|
24/0.20
|
0.6
|
1.2
|
8.3
|
10.3
|
26
|
0.011
|
|
KVVR5X1.0
|
32/0.20
|
0.6
|
1.2
|
8.6
|
10.8
|
19.5
|
0.01
|
|
KVVR5X1.5
|
48/0.20
|
0.7
|
1.2
|
9.8
|
12.2
|
13.3
|
0.01
|
|
KVVR5X2.5
|
40/0.25
|
0.8
|
1.5
|
11.5
|
14.3
|
7.98
|
0.009
|
|
KVVR7X0.5
|
16/0.20
|
0.6
|
1.2
|
8.5
|
10.6
|
39
|
0.013
|
|
KVVR7X0.75
|
24/0.20
|
0.6
|
1.2
|
8.9
|
11.1
|
26
|
0.011
|
|
KVVR7X1.0
|
32/0.20
|
0.6
|
1.2
|
9.3
|
11.7
|
19.5
|
0.01
|
|
KVVR7X1.5
|
48/0.20
|
0.7
|
1.2
|
10.6
|
13.2
|
13.3
|
0.01
|
|
KVVR7X2.5
|
40/0.25
|
0.8
|
1.5
|
13.1
|
16.2
|
7.98
|
0.009
|
|
KVVR8X0.5
|
16/0.20
|
0.6
|
1.2
|
9.4
|
11.7
|
39
|
0.013
|
|
KVVR8X0.75
|
24/0.20
|
0.6
|
1.2
|
9.9
|
12.3
|
26
|
0.011
|
|
KVVR8X1.0
|
32/0.20
|
0.6
|
1.2
|
10.4
|
12.9
|
19.5
|
0.01
|
|
KVVR8X1.5
|
48/0.20
|
0.7
|
1.2
|
12.5
|
15.4
|
13.3
|
0.01
|
|
KVVR8X2.5
|
40/0.25
|
0.8
|
1.5
|
14.6
|
18
|
7.98
|
0.009
|
|
KVVR10X0.5
|
16/0.20
|
0.6
|
1.2
|
10.5
|
13.1
|
39
|
0.013
|
|
KVVR10X0.75
|
24/0.20
|
0.6
|
1.2
|
11.1
|
13.8
|
26
|
0.011
|
|
KVVR10X1.0
|
32/0.20
|
0.6
|
1.5
|
12.3
|
15.2
|
19.5
|
0.01
|
|
KVVR10X1.5
|
48/0.20
|
0.7
|
1.5
|
14
|
17.3
|
13.3
|
0.01
|
|
KVVR10X2.5
|
40/0.25
|
0.8
|
1.5
|
16.5
|
20.3
|
7.98
|
0.009
|
|
KVVR12X0.5
|
16/0.20
|
0.6
|
1.2
|
10.9
|
13.5
|
39
|
0.013
|
|
KVVR12X0.75
|
24/0.20
|
0.6
|
1.5
|
11.5
|
14.2
|
26
|
0.011
|
|
KVVR12X1.0
|
32/0.20
|
0.6
|
1.5
|
12.7
|
15.7
|
19.5
|
0.01
|
|
KVVR12X1.5
|
48/0.20
|
0.7
|
1.5
|
14.4
|
17.8
|
13.3
|
0.01
|
|
KVVR12X2.5
|
40/0.25
|
0.8
|
1.5
|
17
|
21
|
7.98
|
0.009
|
|
KVVR14X0.5
|
16/0.20
|
0.6
|
1.2
|
11.4
|
14.1
|
39
|
0.013
|
|
KVVR14X0.75
|
24/0.20
|
0.6
|
1.5
|
12.6
|
15.6
|
26
|
0.011
|
|
KVVR14X1.0
|
32/0.20
|
0.6
|
1.5
|
13.2
|
16.4
|
19.5
|
0.01
|
|
KVVR14X1.5
|
48/0.20
|
0.7
|
1.5
|
15.1
|
18.7
|
13.3
|
0.01
|
|
KVVR14X2.5
|
40/0.25
|
0.8
|
1.5
|
17.9
|
22
|
7.98
|
0.009
|
|
KVVR16X0.5
|
16/0.20
|
0.6
|
1.5
|
12.6
|
15.5
|
39
|
0.013
|
|
KVVR16X0.75
|
24/0.20
|
0.6
|
1.5
|
13.2
|
16.4
|
26
|
0.011
|
|
KVVR16X1.0
|
32/0.20
|
0.6
|
1.5
|
13.9
|
17.2
|
19.5
|
0.01
|
|
KVVR16X1.5
|
48/0.20
|
0.7
|
1.5
|
16
|
19.6
|
13.3
|
0.01
|
|
KVVR16X2.5
|
40/0.25
|
0.8
|
1.7
|
19.3
|
23.6
|
7.98
|
0.009
|
|
KVVR19X0.5
|
16/0.20
|
0.6
|
1.5
|
13.2
|
16.3
|
39
|
0.013
|
|
KVVR19X0.75
|
24/0.20
|
0.6
|
1.5
|
13.9
|
17.2
|
26
|
0.011
|
|
KVVR19X1.0
|
32/0.20
|
0.6
|
1.5
|
14.6
|
18
|
19.5
|
0.01
|
|
KVVR19X1.5
|
48/0.20
|
0.7
|
1.5
|
16.8
|
20.6
|
13.3
|
0.01
|
|
KVVR19X2.5
|
40/0.25
|
0.8
|
1.5
|
20.3
|
24.9
|
7.98
|
0.009
|
|
KVVR24X0.5
|
16/0.20
|
0.6
|
1.5
|
15.3
|
18.8
|
39
|
0.013
|
|
KVVR24X0.75
|
24/0.20
|
0.6
|
1.5
|
16.1
|
19.8
|
26
|
0.011
|
|
KVVR24X1.0
|
32/0.20
|
0.6
|
1.5
|
17
|
20.9
|
19.5
|
0.01
|
|
KVVR24X1.5
|
48/0.20
|
0.7
|
1.7
|
20
|
24.5
|
13.3
|
0.01
|
|
KVVR24X2.5
|
40/0.25
|
0.8
|
1.7
|
23.7
|
29
|
7.98
|
0.009
|
|
KVVR27X0.5
|
16/0.20
|
0.6
|
1.5
|
15.6
|
19.2
|
39
|
0.013
|
|
KVVR27X0.75
|
24/0.20
|
0.6
|
1.5
|
16.4
|
20.2
|
26
|
0.011
|
|
KVVR27X1.0
|
32/0.20
|
0.6
|
1.5
|
17.3
|
21.3
|
19.5
|
0.01
|
|
KVVR27X1.5
|
48/0.20
|
0.7
|
1.7
|
20.4
|
25
|
13.3
|
0.01
|
|
KVVR27X2.5
|
40/0.25
|
0.8
|
1.7
|
24.2
|
29.6
|
7.98
|
0.009
|
|
KVVR30X0.5
|
16/0.20
|
0.6
|
1.5
|
16.1
|
19.8
|
39
|
0.013
|
|
KVVR30X0.75
|
24/0.20
|
0.6
|
1.5
|
17
|
20.9
|
26
|
0.011
|
|
KVVR30X1.0
|
32/0.20
|
0.6
|
1.7
|
17.9
|
22
|
19.5
|
0.01
|
|
KVVR30X1.5
|
48/0.20
|
0.7
|
1.7
|
21.1
|
25.9
|
13.3
|
0.01
|
|
KVVR30X2.5
|
40/0.25
|
0.8
|
1.7
|
25.1
|
30.7
|
7.98
|
0.009
|
|
KVVR37X0.5
|
16/0.20
|
0.6
|
1.5
|
17.3
|
21.3
|
39
|
0.013
|
|
KVVR37X0.75
|
24/0.20
|
0.6
|
1.7
|
18.7
|
23
|
26
|
0.011
|
|
KVVR37X1.0
|
32/0.20
|
0.6
|
1.7
|
19.7
|
24.2
|
19.5
|
0.01
|
|
KVVR37X1.5
|
48/0.20
|
0.7
|
1.7
|
22.7
|
27.8
|
13.3
|
0.01
|
|
KVVR37X2.5
|
40/0.25
|
0.8
|
1.7
|
27.7
|
33.8
|
7.98
|
0.009
|
|
KVVR44X0.5
|
16/0.20
|
0.6
|
1.7
|
19.8
|
24.2
|
39
|
0.013
|
|
KVVR44X0.75
|
24/0.20
|
0.6
|
1.7
|
20.9
|
25.6
|
26
|
0.011
|
|
KVVR44X1.0
|
32/0.20
|
0.6
|
1.7
|
22.1
|
27
|
19.5
|
0.01
|
|
KVVR44X1.5
|
48/0.20
|
0.7
|
1.7
|
25.5
|
31.2
|
13.3
|
0.01
|
|
KVVR44X2.5
|
40/0.25
|
0.8
|
2
|
31.1
|
37.9
|
7.98
|
0.009
|
|
KVVR48X0.5
|
16/0.20
|
0.6
|
1.7
|
20.1
|
24.6
|
39
|
0.013
|
|
KVVR48X0.75
|
24/0.20
|
0.6
|
1.7
|
21.2
|
26
|
26
|
0.011
|
|
KVVR48X1.0
|
32/0.20
|
0.6
|
1.7
|
22.4
|
27.5
|
19.5
|
0.01
|
|
KVVR48X1.5
|
48/0.20
|
0.7
|
1.7
|
25.9
|
31.7
|
13.3
|
0.01
|
|
KVVR48X2.5
|
40/0.25
|
0.8
|
2
|
31.6
|
38.5
|
7.98
|
0.009
|
|
KVVR52X0.5
|
16/0.20
|
0.6
|
1.7
|
20.6
|
25.3
|
39
|
0.013
|
|
KVVR52X0.75
|
24/0.20
|
0.6
|
1.7
|
21.8
|
26.7
|
26
|
0.011
|
|
KVVR52X1.0
|
32/0.20
|
0.6
|
1.7
|
23
|
28.2
|
19.5
|
0.01
|
|
KVVR52X1.5
|
48/0.20
|
0.7
|
1.7
|
26.7
|
32.6
|
13.3
|
0.01
|
|
KVVR52X2.5
|
40/0.25
|
0.8
|
2
|
32.9
|
40.1
|
7.98
|
0.009
|
|
KVVR61X0.5
|
16/0.20
|
0.6
|
1.7
|
21.8
|
26.7
|
39
|
0.013
|
|
KVVR61X0.75
|
24/0.20
|
0.6
|
1.7
|
23.1
|
28.3
|
26
|
0.011
|
|
KVVR61X1.0
|
32/0.20
|
0.6
|
1.7
|
24.4
|
29.9
|
19.5
|
0.01
|
|
KVVR61X1.5
|
48/0.20
|
0.7
|
2
|
28.9
|
35.3
|
13.3
|
0.01
|
|
KVVR61X2.5
|
40/0.25
|
0.8
|
2.2
|
34.9
|
42.5
|
7.98
|
0.009
|
