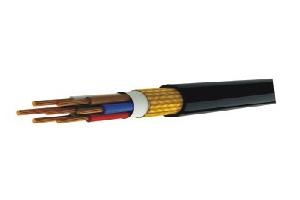

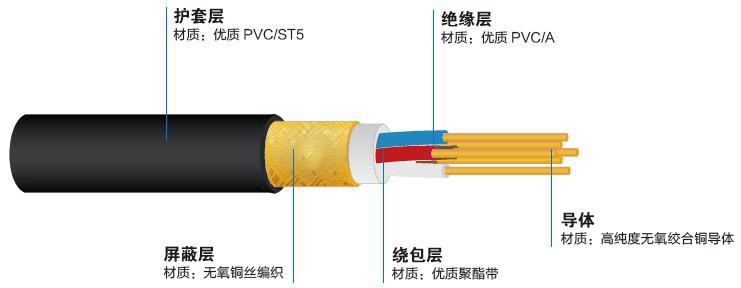

铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽控制电缆 KVVP 型
— 技术参数
参考标准：GB/T9330.2-2008
额定电压：U0/U 为450/750V
额定温度：70℃
— 产品应用
本产品适用于交流额定电压U0/U 为450/750V 及以下控制，监控回路及保护线路等要求屏蔽场所使用的聚氯乙烯绝缘和聚氯
乙烯护套控制电缆。
— 使用特性
1. 电缆导体允许长期工作温度应不超过70℃
2. 电缆敷设温度应不低于0℃
3. 敷设时电缆允许弯曲半径应不小于电缆外径的6 倍
4. 护套材料为优质聚氯乙烯，抗老化，耐磨损，防水，防油，防化学腐蚀，无毒等特性
|
KVVP 型450/750V 铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽控制电缆的综合数据
|
|
芯线X 标称 截面（mm2）
|
导体结构(NO.mm）
|
绝缘厚度 规定值（mm）
|
屏蔽单线标称直径（mm）
|
护套厚度 规定值（mm）
|
多支绞合导体电缆外形尺寸（mm）
|
20℃时导体 电阻 最大值(Ω/KM)
|
70℃时绝缘 电阻 最小值 (MΩ/KM)
|
|
|
|
|
|
|
下限
|
上限
|
|
|
|
KVVP2X0.75
|
7/0.37
|
0.6
|
0.15
|
1.2
|
7.9
|
9.6
|
24.5
|
0.014
|
|
KVVP2X1.0
|
7/0.43
|
0.6
|
0.15
|
1.2
|
8.2
|
9.9
|
18.1
|
0.013
|
|
KVVP2X1.5
|
7/0.52
|
0.7
|
0.15
|
1.2
|
9.1
|
11
|
12.1
|
0.01
|
|
KVVP2X2.5
|
7/0.68
|
0.8
|
0.15
|
1.2
|
10.2
|
12.4
|
7.41
|
0.009
|
|
KVVP2X4
|
7/0.85
|
0.8
|
0.2
|
1.5
|
11.2
|
13.5
|
4.61
|
0.0077
|
|
KVVP2X6
|
7/1.04
|
0.8
|
0.2
|
1.5
|
12.8
|
15.5
|
3.08
|
0.0065
|
|
KVVP2X10
|
7/1.33
|
1
|
0.2
|
1.5
|
15.6
|
18.8
|
1.83
|
0.0065
|
|
KVVP3X0.75
|
7/0.37
|
0.6
|
0.15
|
1.2
|
8.3
|
10
|
24.5
|
0.014
|
|
KVVP3X1.0
|
7/0.43
|
0.6
|
0.15
|
1.2
|
8.6
|
10.4
|
18.1
|
0.013
|
|
KVVP3X1.5
|
7/0.52
|
0.7
|
0.15
|
1.2
|
9.5
|
11.5
|
12.1
|
0.01
|
|
KVVP3X2.5
|
7/0.68
|
0.8
|
0.15
|
1.2
|
10.8
|
13
|
7.41
|
0.009
|
|
KVVP3X4
|
7/0.85
|
0.8
|
0.2
|
1.5
|
11.8
|
14.2
|
4.61
|
0.0077
|
|
KVVP3X6
|
7/1.04
|
0.8
|
0.2
|
1.5
|
13.7
|
16.6
|
3.08
|
0.0065
|
|
KVVP3X10
|
7/1.33
|
1
|
0.2
|
1.5
|
16.4
|
19.9
|
1.83
|
0.0065
|
|
KVVP4X0.75
|
7/0.37
|
0.6
|
0.15
|
1.2
|
8.8
|
10.7
|
24.5
|
0.014
|
|
KVVP4X1.0
|
7/0.43
|
0.6
|
0.15
|
1.2
|
9.2
|
11.1
|
18.1
|
0.013
|
|
KVVP4X1.5
|
7/0.52
|
0.7
|
0.15
|
1.2
|
10.2
|
12.4
|
12.1
|
0.01
|
|
KVVP4X2.5
|
7/0.68
|
0.8
|
0.15
|
1.5
|
11.6
|
14
|
7.41
|
0.009
|
|
KVVP4X4
|
7/0.85
|
0.8
|
0.2
|
1.5
|
13.6
|
16.4
|
4.61
|
0.0077
|
|
KVVP4X6
|
7/1.04
|
0.8
|
0.2
|
1.5
|
14.9
|
18
|
3.08
|
0.0065
|
|
KVVP4X10
|
7/1.33
|
1
|
0.2
|
1.7
|
17.9
|
21.6
|
1.83
|
0.0065
|
|
KVVP5X0.75
|
7/0.37
|
0.6
|
0.15
|
1.2
|
9.4
|
11.4
|
24.5
|
0.014
|
|
KVVP5X1.0
|
7/0.43
|
0.6
|
0.15
|
1.2
|
9.8
|
11.9
|
18.1
|
0.013
|
|
KVVP5X1.5
|
7/0.52
|
0.7
|
0.15
|
1.2
|
11
|
13.3
|
12.1
|
0.01
|
|
KVVP5X2.5
|
7/0.68
|
0.8
|
0.15
|
1.5
|
13.1
|
15.9
|
7.41
|
0.009
|
|
KVVP5X4
|
7/0.85
|
0.8
|
0.2
|
1.5
|
14.7
|
17.7
|
4.61
|
0.0077
|
|
KVVP5X6
|
7/1.04
|
0.8
|
0.2
|
1.5
|
16.1
|
19.4
|
3.08
|
0.0065
|
|
KVVP5X10
|
7/1.33
|
1
|
0.2
|
1.7
|
19.8
|
24
|
1.83
|
0.0065
|
|
KVVP7X0.75
|
7/0.37
|
0.6
|
0.15
|
1.2
|
10.1
|
12.2
|
24.5
|
0.014
|
|
KVVP7X1.0
|
7/0.43
|
0.6
|
0.15
|
1.2
|
10.5
|
12.7
|
18.1
|
0.013
|
|
KVVP7X1.5
|
7/0.52
|
0.7
|
0.15
|
1.5
|
11.8
|
14.3
|
12.1
|
0.01
|
|
KVVP7X2.5
|
7/0.68
|
0.8
|
0.15
|
1.5
|
14.4
|
17.3
|
7.41
|
0.009
|
|
KVVP7X4
|
7/0.85
|
0.8
|
0.2
|
1.5
|
15.8
|
19.1
|
4.61
|
0.0077
|
|
KVVP7X6
|
7/1.04
|
0.8
|
0.2
|
1.5
|
17.4
|
21
|
3.08
|
0.0065
|
|
KVVP7X10
|
7/1.33
|
1
|
0.2
|
1.7
|
21.5
|
26
|
1.83
|
0.0065
|
|
KVVP8X0.75
|
7/0.37
|
0.6
|
0.15
|
1.2
|
11.1
|
13.4
|
24.5
|
0.014
|
|
KVVP8X1.0
|
7/0.43
|
0.6
|
0.15
|
1.5
|
11.5
|
14
|
18.1
|
0.013
|
|
KVVP8X1.5
|
7/0.52
|
0.7
|
0.15
|
1.5
|
13.9
|
16.7
|
12.1
|
0.01
|
|
KVVP8X2.5
|
7/0.68
|
0.8
|
0.15
|
1.5
|
15.8
|
19.1
|
7.41
|
0.009
|
|
KVVP8X4
|
7/0.85
|
0.8
|
0.2
|
1.7
|
17.5
|
21.1
|
4.61
|
0.0077
|
|
KVVP8X6
|
7/1.04
|
0.8
|
0.2
|
1.7
|
19.7
|
23.8
|
3.08
|
0.0065
|
|
KVVP8X10
|
7/1.33
|
1
|
0.25
|
1.7
|
24.2
|
29.3
|
1.83
|
0.0065
|
|
KVVP10X0.75
|
7/0.37
|
0.6
|
0.15
|
1.5
|
12.8
|
15.5
|
24.5
|
0.014
|
|
KVVP10X1.0
|
7/0.43
|
0.6
|
0.15
|
1.5
|
13.6
|
16.5
|
18.1
|
0.013
|
|
KVVP10X1.5
|
7/0.52
|
0.7
|
0.15
|
1.5
|
15.4
|
18.6
|
12.1
|
0.01
|
|
KVVP10X2.5
|
7/0.68
|
0.8
|
0.15
|
1.5
|
17.7
|
21.3
|
7.41
|
0.009
|
|
KVVP10X4
|
7/0.85
|
0.8
|
0.2
|
1.7
|
20
|
24.1
|
4.61
|
0.0077
|
|
KVVP10X6
|
7/1.04
|
0.8
|
0.25
|
1.7
|
22.1
|
26.7
|
3.08
|
0.0065
|
|
KVVP10X10
|
7/1.33
|
1
|
0.25
|
1.7
|
27.9
|
33.7
|
1.83
|
0.0065
|
|
KVVP12X0.75
|
7/0.37
|
0.6
|
0.15
|
1.5
|
13.2
|
15.9
|
24.5
|
0.014
|
|
KVVP12X1.0
|
7/0.43
|
0.6
|
0.15
|
1.5
|
14
|
16.9
|
18.1
|
0.013
|
|
KVVP12X1.5
|
7/0.52
|
0.7
|
0.15
|
1.5
|
15.8
|
19.1
|
12.1
|
0.01
|
|
KVVP12X2.5
|
7/0.68
|
0.8
|
0.15
|
1.7
|
18.2
|
22
|
7.41
|
0.009
|
|
KVVP12X4
|
7/0.85
|
0.8
|
0.2
|
1.7
|
20.6
|
24.9
|
4.61
|
0.0077
|
|
KVVP12X6
|
7/1.04
|
0.8
|
0.25
|
1.7
|
22.8
|
27.5
|
3.08
|
0.0065
|
|
KVVP14X0.75
|
7/0.37
|
0.6
|
0.15
|
1.5
|
13.9
|
16.8
|
24.5
|
0.014
|
|
KVVP14X1.0
|
7/0.43
|
0.6
|
0.15
|
1.5
|
14.6
|
17.6
|
18.1
|
0.013
|
|
KVVP14X1.5
|
7/0.52
|
0.7
|
0.15
|
1.5
|
16.5
|
19.9
|
12.1
|
0.01
|
|
KVVP14X2.5
|
7/0.68
|
0.8
|
0.15
|
1.7
|
19.4
|
23.4
|
7.41
|
0.009
|
|
KVVP14X4
|
7/0.85
|
0.8
|
0.2
|
1.7
|
21.5
|
26
|
4.61
|
0.0077
|
|
KVVP14X6
|
7/1.04
|
0.8
|
0.25
|
1.7
|
21.1
|
29.1
|
3.08
|
0.0065
|
|
KVVP16X0.75
|
7/0.37
|
0.6
|
0.2
|
1.5
|
14.6
|
17.6
|
24.5
|
0.014
|
|
KVVP16X1.0
|
7/0.43
|
0.6
|
0.2
|
1.5
|
15.2
|
18.4
|
18.1
|
0.013
|
|
KVVP16X1.5
|
7/0.52
|
0.7
|
0.2
|
1.5
|
17.3
|
20.9
|
12.1
|
0.01
|
|
KVVP16X2.5
|
7/0.68
|
0.8
|
0.2
|
1.7
|
20.4
|
24.6
|
7.41
|
0.009
|
|
KVVP19X0.75
|
7/0.37
|
0.6
|
0.2
|
1.5
|
15.2
|
18.4
|
24.5
|
0.014
|
|
KVVP19X1.0
|
7/0.43
|
0.6
|
0.2
|
1.5
|
15.9
|
19.3
|
18.1
|
0.013
|
|
KVVP19X1.5
|
7/0.52
|
0.7
|
0.2
|
1.7
|
18.1
|
21.9
|
12.1
|
0.01
|
|
KVVP19X2.5
|
7/0.68
|
0.8
|
0.2
|
1.7
|
21.4
|
25.8
|
7.41
|
0.009
|
|
KVVP24X0.75
|
7/0.37
|
0.6
|
0.2
|
1.5
|
17.4
|
21
|
24.5
|
0.014
|
|
KVVP24X1.0
|
7/0.43
|
0.6
|
0.2
|
1.7
|
18.2
|
22
|
18.1
|
0.013
|
|
KVVP24X1.5
|
7/0.52
|
0.7
|
0.2
|
1.7
|
21.2
|
25.6
|
12.1
|
0.01
|
|
KVVP24X2.5
|
7/0.68
|
0.8
|
0.2
|
1.7
|
24.9
|
30.1
|
7.41
|
0.009
|
|
KVVP27X0.75
|
7/0.37
|
0.6
|
0.2
|
1.5
|
17.7
|
21.4
|
24.5
|
0.014
|
|
KVVP27X1.0
|
7/0.43
|
0.6
|
0.2
|
1.7
|
19
|
22.9
|
18.1
|
0.013
|
|
KVVP27X1.5
|
7/0.52
|
0.7
|
0.2
|
1.7
|
21.6
|
26.1
|
12.1
|
0.01
|
|
KVVP27X2.5
|
7/0.68
|
0.8
|
0.25
|
1.7
|
25.4
|
30.7
|
7.41
|
0.009
|
|
KVVP30X0.75
|
7/0.37
|
0.6
|
0.2
|
1.7
|
18.3
|
22.1
|
24.5
|
0.014
|
|
KVVP30X1.0
|
7/0.43
|
0.6
|
0.2
|
1.7
|
19.6
|
23.6
|
18.1
|
0.013
|
|
KVVP30X1.5
|
7/0.52
|
0.7
|
0.25
|
1.7
|
22.3
|
27
|
12.1
|
0.01
|
|
KVVP30X2.5
|
7/0.68
|
0.8
|
0.25
|
1.7
|
26.3
|
31.7
|
7.41
|
0.009
|
|
KVVP37X0.75
|
7/0.37
|
0.6
|
0.2
|
1.7
|
19.9
|
24.1
|
24.5
|
0.014
|
|
KVVP37X1.0
|
7/0.43
|
0.6
|
0.2
|
1.7
|
20.9
|
25.3
|
18.1
|
0.013
|
|
KVVP37X1.5
|
7/0.52
|
0.7
|
0.25
|
1.7
|
24.2
|
29.2
|
12.1
|
0.01
|
|
KVVP37X2.5
|
7/0.68
|
0.8
|
0.25
|
2
|
28.8
|
34.8
|
7.41
|
0.009
|
|
KVVP44X0.75
|
7/0.37
|
0.6
|
0.25
|
1.7
|
22.1
|
26.7
|
24.5
|
0.014
|
|
KVVP44X1.0
|
7/0.43
|
0.6
|
0.25
|
1.7
|
23.2
|
28.1
|
18.1
|
0.013
|
|
KVVP44X1.5
|
7/0.52
|
0.7
|
0.25
|
1.7
|
27
|
32
|
12.1
|
0.01
|
|
KVVP44X2.5
|
7/0.68
|
0.8
|
0.3
|
2
|
32.5
|
38.5
|
7.41
|
0.009
|
|
KVVP48X0.75
|
7/0.37
|
0.6
|
0.25
|
1.7
|
22.5
|
26.5
|
24.5
|
0.014
|
|
KVVP48X1.0
|
7/0.43
|
0.6
|
0.25
|
1.7
|
23.5
|
28
|
18.1
|
0.013
|
|
KVVP48X1.5
|
7/0.52
|
0.7
|
0.25
|
1.7
|
27.5
|
32.5
|
12.1
|
0.01
|
|
KVVP48X2.5
|
7/0.68
|
0.8
|
0.3
|
2
|
33
|
39
|
7.41
|
0.009
|
|
KVVP52X0.75
|
7/0.37
|
0.6
|
0.25
|
1.7
|
23
|
27.5
|
24.5
|
0.014
|
|
KVVP52X1.0
|
7/0.43
|
0.6
|
0.25
|
1.7
|
24.5
|
29
|
18.1
|
0.013
|
|
KVVP52X1.5
|
7/0.52
|
0.7
|
0.25
|
2
|
29
|
34
|
12.1
|
0.01
|
|
KVVP52X2.5
|
7/0.68
|
0.8
|
0.3
|
2.2
|
34.5
|
40.5
|
7.41
|
0.009
|
|
KVVP61X0.75
|
7/0.37
|
0.6
|
0.25
|
1.7
|
24.5
|
29
|
24.5
|
0.014
|
|
KVVP61X1.0
|
7/0.43
|
0.6
|
0.25
|
1.7
|
25.5
|
30.5
|
18.1
|
0.013
|
|
KVVP61X1.5
|
7/0.52
|
0.7
|
0.25
|
2
|
30.5
|
36
|
12.1
|
0.01
|
|
KVVP61X2.5
|
7/0.68
|
0.8
|
0.3
|
2.2
|
36.5
|
42.5
|
7.41
|
0.009
|
